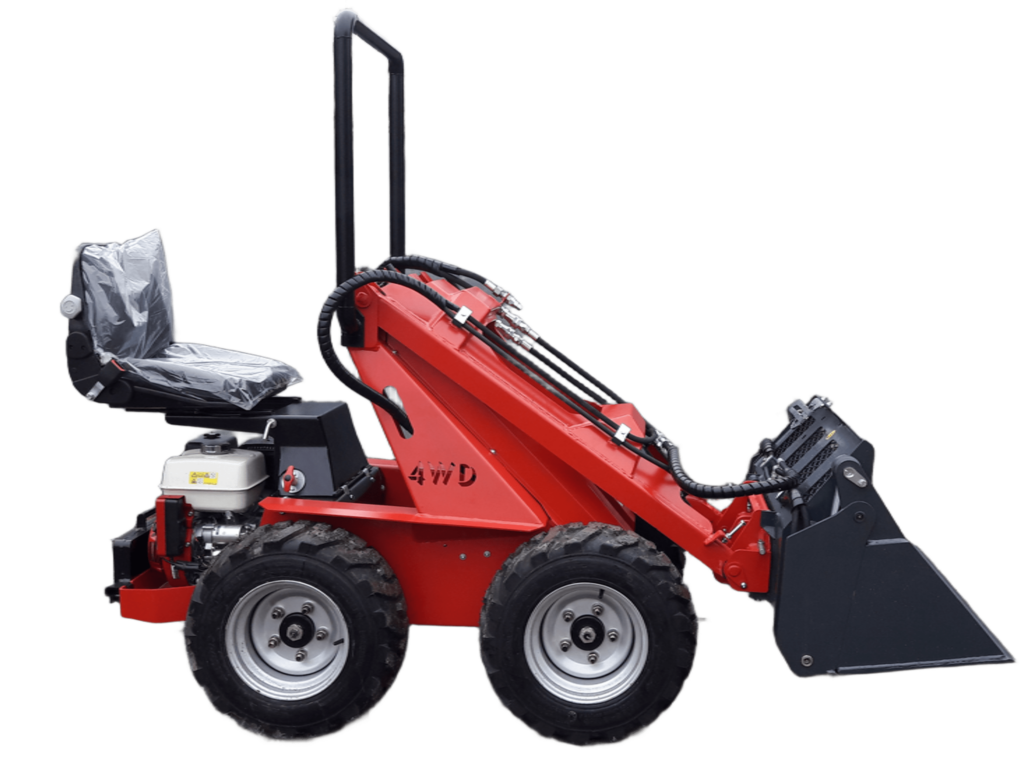

| Model | AFA-ROCK 5K |
|---|---|
| Length | 1680 mm |
| Width | 930-1050 mm |
| Height | 1200 mm |
| Weight | 600 kg |
| Std. wheels |
23x8,5-12 SK400 Standart 23x8,5-12 KG 306 5,70-12 SK400 4,00-12 IMP |
| Transmission, drive | hydraulic |
| Pulling force | 650 kp |
| Drive speed | 0-4,5/0-9km/h |
| Auxilary hidraulics | 22,5-30l/min 200 bar |
| Lift capacity (hydraulic) | 480 kg |
| Tipping force | 500 kg |
| Engine type and make | Honda GX390 |
| Engine output | 10 kw (13 hp) |
| Fuel | Unleaded petroleum |
| Options | |
| Briggs&Stratton engine 23HP (AFA ROCK 5K-23HP) | Oil cooler oil flow 50l/min 200 bar |
| Briggs&Stratton engine 31HP (AFA ROCK 5K-31HP) | Oil cooler oil flow 70l/min 200 bar |
| Radio remote controls | 300 m |
| Big slope machine | |
| Fully electric machine 10kw (AFA ROCK 5K ZERO-EMISSIONS) | |
